Y vs S parameter in electronics and electrical circuit

In electrical engineering, both Y parameters (Admittance parameters) and S parameters (Scattering parameters) are widely used, but their frequency of use depends on the specific application and context.

Y Parameters (Admittance Parameters):

  • Y parameters describe a network in terms of currents and voltages. They are commonly used in low-frequency circuit analysis, such as in audio circuits or power systems.
  • These parameters are more intuitive for certain types of analysis, like nodal analysis, where you're interested in how much current flows through components when voltages are applied.
  • However, Y parameters become less convenient at high frequencies because they assume that voltages and currents can be easily measured, which is often not the case at very high frequencies due to transmission line effects and impedance matching issues.

S Parameters (Scattering Parameters):

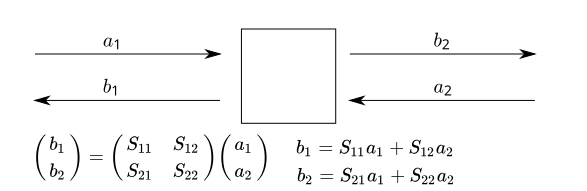

  • S parameters are used extensively in high-frequency applications , such as RF (radio frequency) and microwave engineering, telecommunications, and signal integrity analysis.S-parameter two port network diagram

  • They describe how power is transmitted and reflected in a network, making them ideal for analyzing systems where energy transfer is more important than voltage or current relationships.
  • S parameters are particularly useful because they are defined in terms of traveling waves (incident and reflected), which makes them well-suited for characterizing devices under real-world conditions, especially when dealing with transmission lines, antennas, amplifiers, and other high-frequency components.
  • Modern vector network analyzers (VNAs) typically measure S parameters directly, further increasing their prevalence in high-frequency design and testing.

Which is More Frequently Used?

  • At low frequencies : Y parameters are still quite common, especially in traditional circuit analysis and power systems.
  • At high frequencies (RF, microwave) : S parameters dominate because they are better suited for describing the behavior of systems where reflections, impedance mismatches, and power transfer are critical concerns.

Overall, S parameters tend to be more frequently used in modern electrical engineering, especially in fields related to wireless communication, RF design, and high-speed digital circuits. This is due to the growing importance of high-frequency applications in today's technology landscape. However, Y parameters remain relevant in lower-frequency applications and certain types of circuit analysis.
